20′ Standard Container
|
 |
| Tare weight: |
2 300 kg |
| Max. cargo weight: |
28 180 kg |
| Max. gross weight: |
30 480 kg |
| Length: |
5 898 mm |
| Width: |
2 352 mm |
| Height: |
2 393 mm |
| Doorway width: |
2 340 mm |
| Doorway height: |
2 280 mm |
| Capacity: |
33.2 m3 |
|
| 40′ Standard Container |
 |
| Tare weight: |
3 750 kg |
| Max. cargo weight: |
28 750 kg |
| Max. gross weight: |
32 500 kg |
| Length: |
12 032 mm |
| Width: |
2 352 mm |
| Height: |
2 393 mm |
| Doorway width: |
2 340 mm |
| Doorway height: |
2 280 mm |
| Capacity: |
67.7 m3 |
|

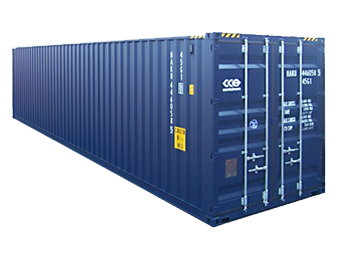

40′ «High-Cube» Container
|
 |
| Tare weight: |
3 940 kg |
| Max. cargo weight: |
28 560 kg |
| Max. gross weight: |
32 500 kg |
| Length: |
12 032 mm |
| Width: |
2 352 mm |
| Height: |
2 698 mm |
| Doorway width: |
2 340 mm |
| Doorway height: |
2 585 mm |
| Capacity: |
76.4 m3 |
|

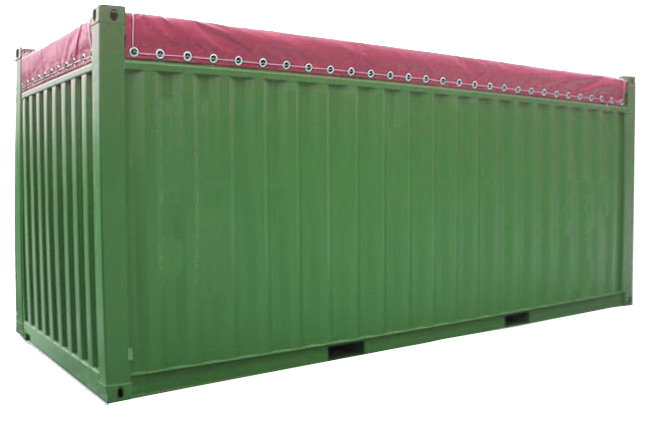

20′ «Open-Top» Container
|
 |
| Tare weight: |
2 360 kg |
| Max. cargo weight: |
28 120 kg |
| Max. gross weight: |
30 480 kg |
| Length: |
5 889 mm |
| Width: |
2 345 mm |
| Height: |
2 346 mm |
| Doorway width: |
2 300 mm |
| Doorway height: |
2 215 mm |
| Capacity: |
33.4 m3 |
| Length of the opening: |
5 492 mm |
| Width of the opening: |
2 184 mm |
|
40′ «Open-Top» Container
|
 |
| Tare weight: |
4 030 kg |
| Max. cargo weight: |
28 470 kg |
| Max. gross weight: |
32 500 kg |
| Length: |
12 024 mm |
| Width: |
2 352 mm |
| Height: |
2 324 mm |
| Doorway width: |
2 340 mm |
| Doorway height: |
2 244 mm |
| Capacity: |
65.7 m3 |
| Length of the opening: |
11 874 mm |
| Width of the opening: |
2 184 mm |
|

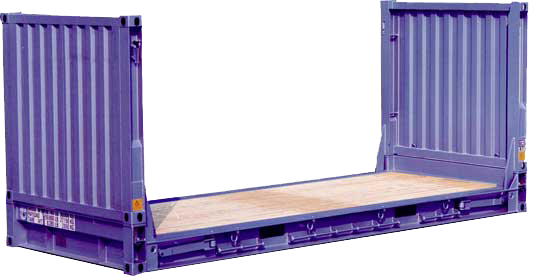

20′ «Flatrack» Container
|
 |
| Tare weight: |
2 360 kg |
| Max. cargo weight: |
30 140 kg |
| Max. gross weight: |
32 500 kg |
| Length: |
5 940 mm |
| Width: |
2 345 mm |
| Height: |
2 346 mm |
|

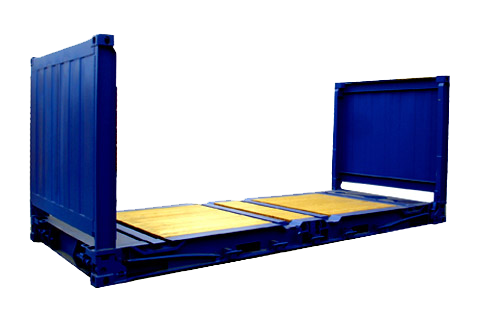

| 40′ «Flatrack» Container |
 |
| Tare weight: |
5 000 kg |
| Max. cargo weight: |
40 000 kg |
| Max. gross weight: |
45 000 kg |
| Length: |
12 132 mm |
| Width: |
2 400 mm |
| Height: |
2 135 mm |
|

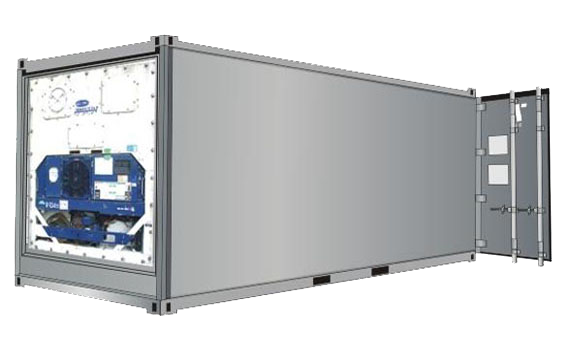

20′ «Reefer» Container
|
 |
| Tare weight: |
3 080 kg |
| Max. cargo weight: |
27 400 kg |
| Max. gross weight: |
30 480 kg |
| Length: |
5 444 mm |
| Width: |
2 268 mm |
| Height: |
2 272 mm |
| Doorway width: |
2 276 mm |
| Doorway height: |
2 261 mm |
| Capacity: |
28.1 m3 |
|

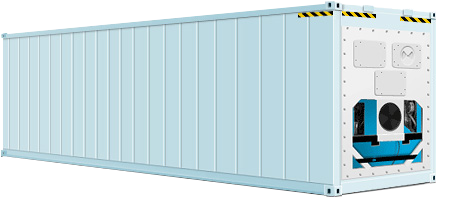

40′«Reefer» Container
|
 |
| Tare weight: |
4 800 kg |
| Max. cargo weight: |
27 700 kg |
| Max. gross weight: |
32 500 kg |
| Length: |
11 561 mm |
| Width: |
2 280 mm |
| Height: |
2 249 mm |
| Doorway width: |
2 280 mm |
| Doorway height: |
2 249 mm |
| Length of the opening: |
2 280 mm |
| Width of the opening: |
2 205 mm |
| Capacity: |
59.3 m3 |
|

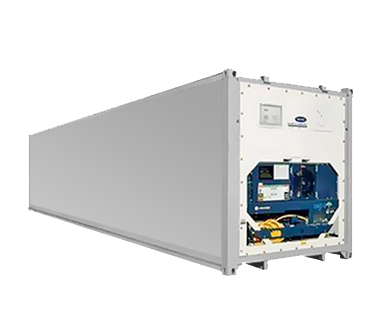

40′ «Reefer High-Cube» Container
|
 |
| Tare weight: |
4 850 kg |
| Max. cargo weight: |
29 150 kg |
| Max. gross weight: |
34 000 kg |
| Length: |
11 571 mm |
| Width: |
2 268 mm |
| Height: |
2 553 mm |
| Doorway width: |
2 276 mm |
| Doorway height: |
2 501 mm |
| Capacity: |
67 m3 |
|
